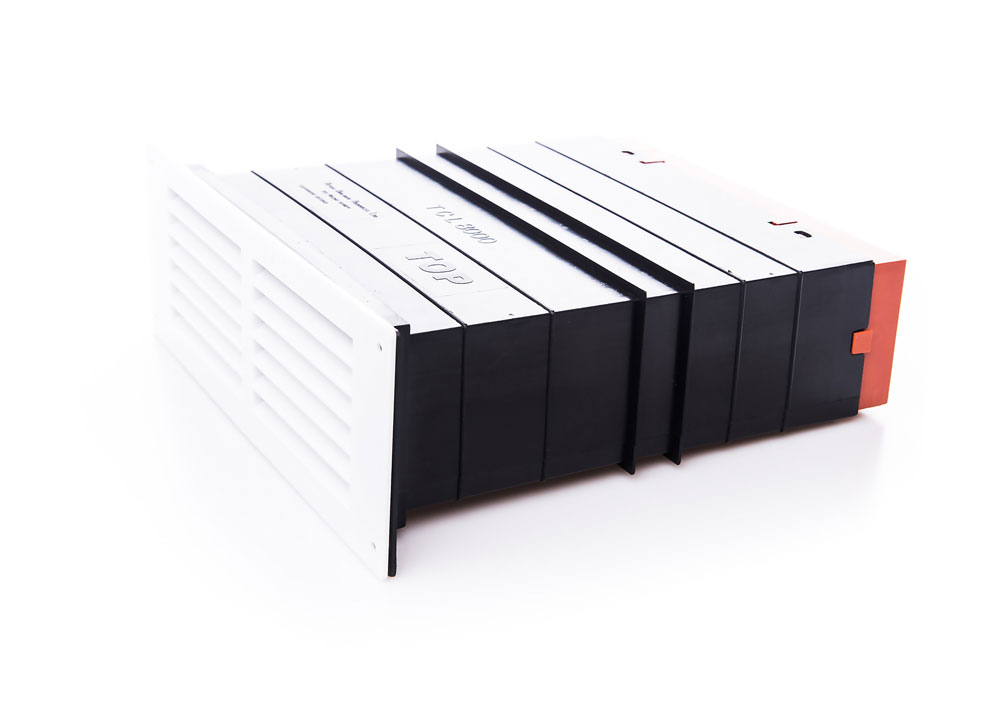

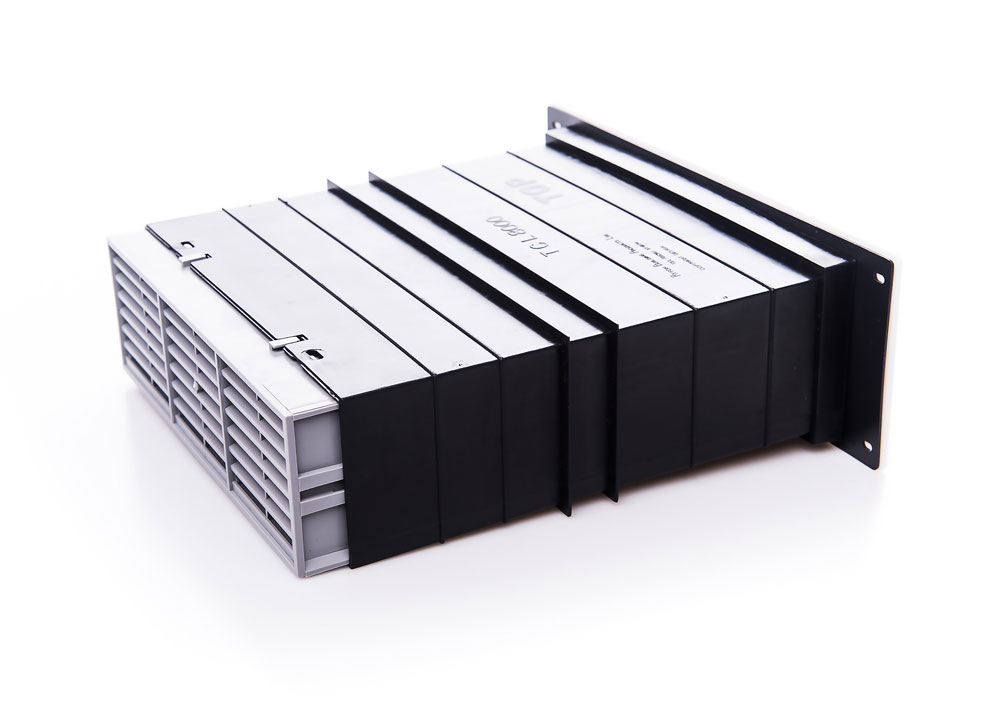

STOVE VENTS- TCL8 – Rytons 9×3 Ventilation Set with Flush Louvre Ventilator

TCL8CWL – Rytons 9×3 Cowled Ventilation Set

TCL8CWL – Rytons 9×3 Cowled Ventilation Set

Telescopic cavity liner set with external cowl for ventilating boilers, stoves and fires.

Cowl protects against excessive weather conditions and alleviates air blasts through the cavity.

Contains an internal baffle to reduce light and draughts.

Finished with a fixed open flush fitting louvre ventilator internally.

External water baffles prevent transfer of water across the cavity.

Cowl, air brick and louvre grille U.V. stabilised to slow down the effects of sunlight.

HETAS approved for use with solid fuel appliances.

Calculate your venting requirements here.

Louvre Ventilator
VENT/GRILL/4/BS/CWL9' X 3' VENTILATION SET WITH LOUVERED VENTILATION (9,400mm2)(AIR BRICK: BUFF SAND) (TCL8B)
VENT/GRILL/4/TC/CWL9' X 3' VENTILATION SET WITH LOUVERED VENTILATION (9,400mm2)(AIR BRICK: TERRACOTTA) (TCL8T)
VENT/GRILL/4/WH/CWL9' X 3' VENTILATION SET WITH LOUVERED VENTILATION (9,400mm2)(AIR BRICK:WHITE) (TCL8W)
Louvre Ventilator

Equivalent Area:

  • 9,100mm² (91cm²) per set (tested to BS EN 13141-1:2004 and independently verified by the BRE).

Size:

  • Cowl: 255mm L x 96mm H x 44mm D.
  • AirLiner sleeve: 220mm W x 71mm H, extends from 250mm to 368mm L (including air brick) (see image gallery).
  • Louvre grille: 270mm L x 97mm H.

Colours:

  • Terracotta: TCL8TCWL.
  • Buff/Sand: TCL8BCWL.
  • White louvre grille.

Composition:

  • Cowl and louvre grille: U.V. stabilised high impact polystyrene.
  • Multifix Air Brick: U.V. stabilised polypropylene.
  • AirLiner sleeve: Polypropylene (contains recycled plastic).

Installation:

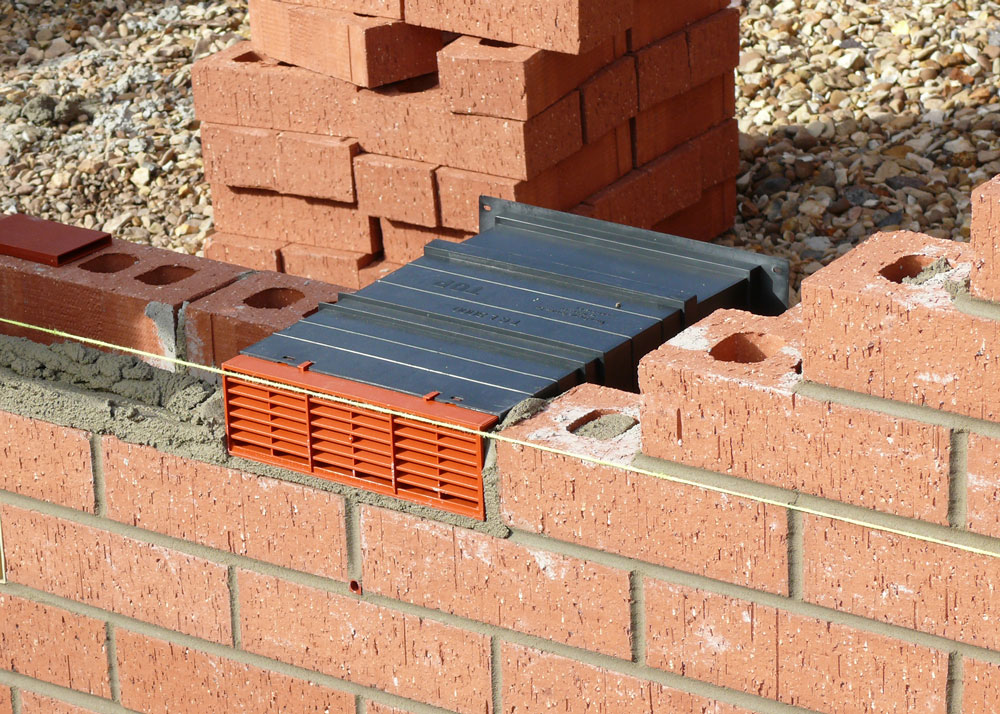

  • No special fixing required. Build in the cavity liner with fitted air brick as work proceeds. Extend the telescopic sleeve as necessary. Fasten the cowl to the brickwork. Fasten the louvre ventilator internally.

Handling Information:

  • Box quantity: 1 set.
  • Box size: 32cm W x 10.5cm H x 29cm D.
  • Box weight: 0.62kg.

Reference Material:

  • Equivalent area tested to BS EN 13141-1:2004 and independently verified by the BRE.
  • Also refer to: The Building Regulations, Approved Document J,
  • The Building (Scotland) Regulations, Mandatory Standard 3.21,
  • The Building Regulations (Northern Ireland), Technical Booklet L,
  • British Standard BS 5440-2,
  • British Standard BS 5871-3 (decorative fuel effect gas fires).
