STOVE VENTS- AC10LPCWL – Rytons Cowled LookRyt® AirCore®

AC10LPBCWL– Rytons COWLED LOOKRYT AIRCORE VENT
VENT/GRILL/2/BS/CWLCOWLED LOOKRYT AIRCORE VENT-11,100mm2-BUFF SAND-AC10LPBCWL
VENT/GRILL/2/TC/CWLCOWLED LOOKRYT AIRCORE VENT-11,100mm2-TERRACOTTA/ COWL-AC10LPTCWL
VENT/GRILL/2/WH/CWLCOWLED LOOKRYT AIRCORE VENT-11,100mm2-TWHITE/ COWL-AC10LPTCWL

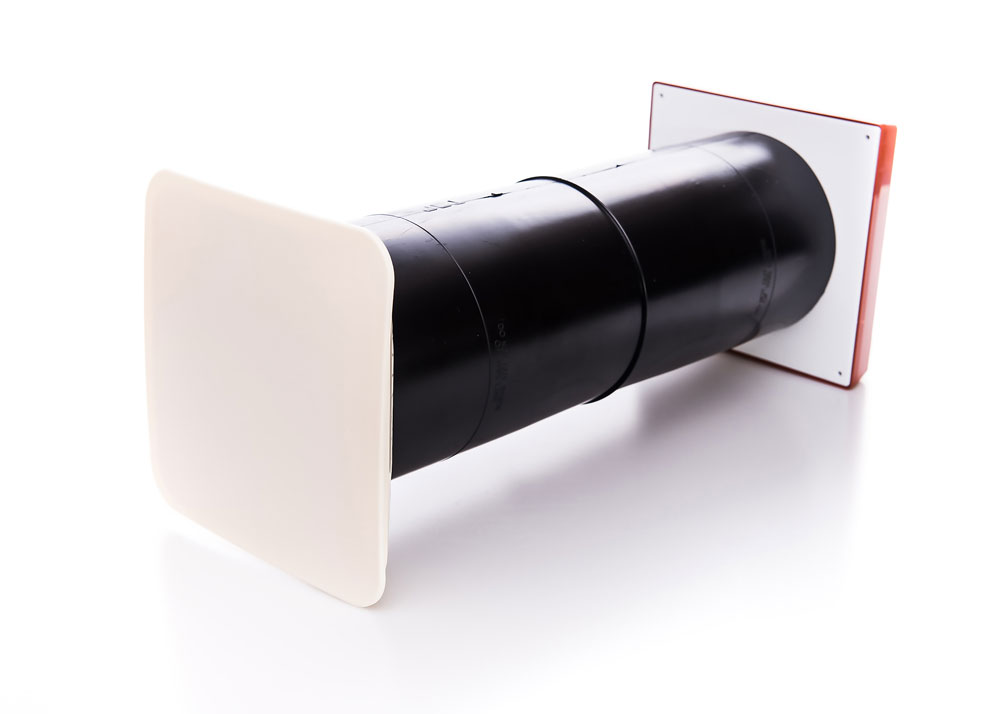

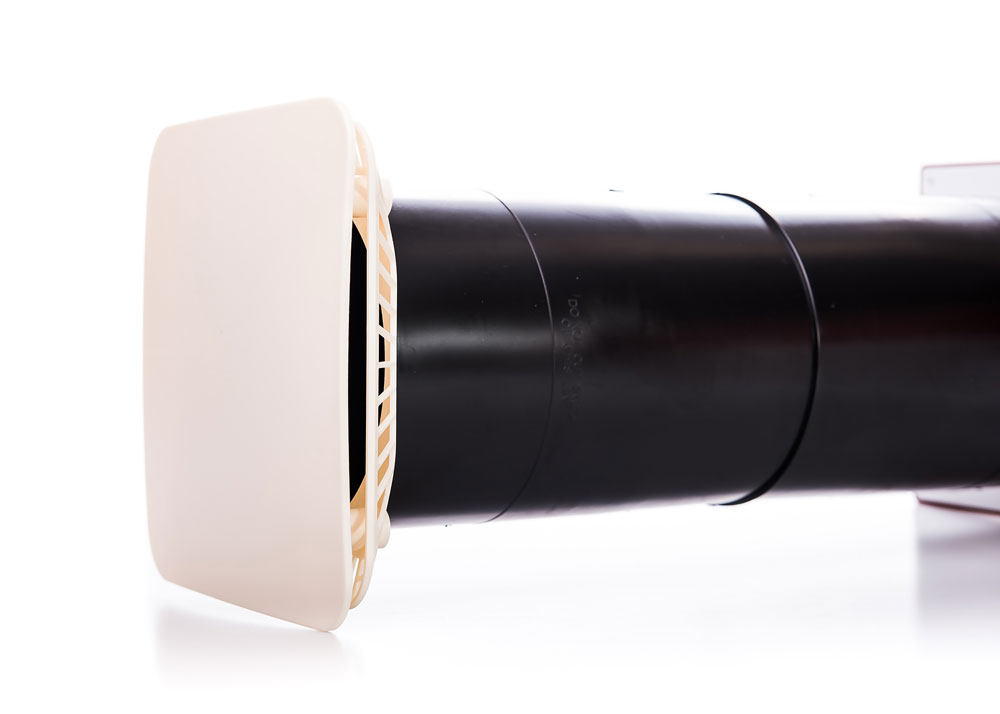

AC10LPCWL – Rytons Cowled LookRyt AirCore

Retro-fitted combustion air vent for boilers, stoves and fires.

Cowl protects against excessive weather conditions and alleviates air blasts through the cavity.

Provides over 100cm² equivalent area.

Unique draught reducing panel disperses air evenly for improved comfort.

Paint or wallpaper the panel to match room décor for a discreet appearance.

External water baffle prevents transfer of water across the cavity.

Cowl and external grille U.V. stabilised to slow down the effects of sunlight.

HETAS approved for use with solid fuel appliances.

LookRyt Panel: Patent No. GB 2490138.

Technical Details

Equivalent Area:

  • 11,100mm² (111cm²) per unit (tested to BS EN 13141-1:2004 and independently verified by the BRE).

Size:

  • Cowl: 217mm L x 210mm H x 93mm D.
  • External grille: 166mm L x 160mm H.
  • Tube: 127mm (5″) Dia. x 358mm L.
  • LookRyt panel: 172mm L x 172mm H.

Colours:

  • Terracotta: AC10LPTCWL.
  • Buff/Sand: AC10LPBCWL.
  • White: AC10LPWCWL.
  • LookRyt panel: Magnolia (may be painted or wallpapered to match décor).

Composition:

  • Cowl and external grille: U.V. stabilised high impact polystyrene.
  • Tube: High impact polystyrene (contains recycled plastic). Softening point: 70ºC. Melting point: 120ºC.
  • LookRyt panel: High impact styrene. Melting point: 160-180ºC.

Handling Information:

  • Box quantity: 1 set.
  • Box size: 44cm W x 19cm H x 22.5cm D.
  • Box weight: 0.759kg.

Reference Material:

  • Equivalent area tested to BS EN 13141-1:2004 and independently verified by the BRE.
  • Also refer to: The Building Regulations, Approved Document J,
  • The Building (Scotland) Regulations, Mandatory Standard 3.21,
  • The Building Regulations (Northern Ireland), Technical Booklet L,
  • British Standard BS 5440-2,
  • British Standard BS 5871-3 (decorative fuel effect gas fires).
