STOVE VENTS- AAC125LPCWL – Rytons Cowled Super Acoustic LookRyt® AirCore®

Rytons Super Acoustic Controllable LookRyt® AirCore®
Rytons Super Acoustic Controllable LookRyt® AirCore®
VENT/GRILL/1/BS/CWLSUPER ACOUSTIC LOOK RYT AIRCORE 7,200mm2- BUFF SAND- AAC125LPBCWL
VENT/GRILL/1/TC/CWLSUPER ACOUSTIC LOOK RYT AIRCORE 7,200mm2- TERRACOTTA- AAC125LPTCWL
VENT/GRILL/1/WH/CWLSUPER ACOUSTIC LOOK RYT AIRCORE 7,200mm2- WHITE- AAC125LPWCWL
Rytons Super Acoustic Controllable LookRyt® AirCore®

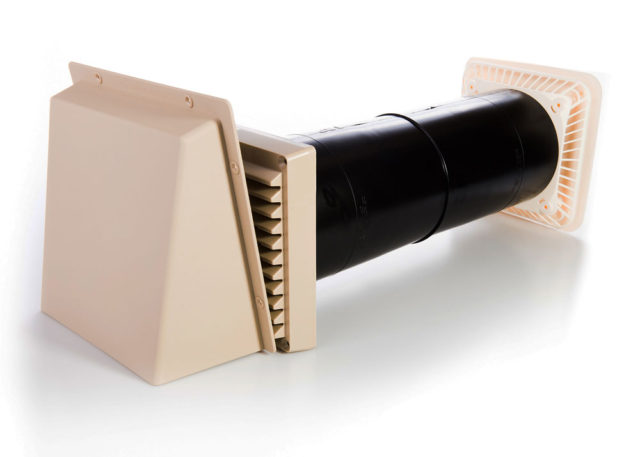

Retro-fitted combustion air vent with external cowl for boilers, stoves and fires.

Cowl protects against excessive weather conditions and alleviates air blasts through the cavity.

Use in noisy areas to reduce the amount of noise entering the building for a more peaceful environment.

Unique draught reducing panel disperses air evenly for improved comfort.

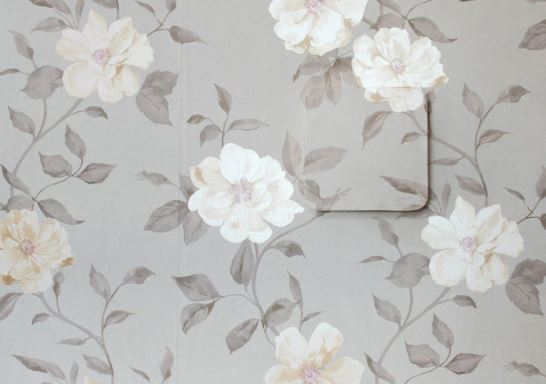

Paint or wallpaper the panel to match room décor for a discreet appearance.

External water baffle prevents transfer of water across the cavity.

Cowl and external grille U.V. stabilised to slow down the effects of sunlight.

HETAS approved for use with solid fuel appliances.

LookRyt Panel: Patent No. GB 2490138.



Technical Details

Sound Reduction & Equivalent Area:

  • Sound reduced by 45 dB (Dn,e,w) (tested by BRE Acoustics).
  • 7,200mm² (72cm²) equivalent area (tested to BS EN 13141-1:2004 and independently verified by the BRE).

Size:

  • Cowl: 217mm L x 210mm H x 93mm D.
  • External grille: 166mm L x 160mm H.
  • Tube: 127mm (5″) Dia. x 358mm L.
  • LookRyt panel: 172mm L x 172mm H.

Colours:

  • Terracotta: AAC125LPTCWL.
  • Buff/Sand: AAC125LPBCWL.
  • White: AAC125LPWCWL.
  • LookRyt panel: Magnolia (may be painted or wallpapered to match décor).

Composition:

  • Cowl and external grille: U.V. stabilised high impact polystyrene.
  • Tube: High impact polystyrene containing sound absorbent foam lining (tube contains recycled plastic). Softening point: 70ºC (unlined). Melting point: 120ºC (unlined).
  • LookRyt panel: High impact styrene. Melting point: 160-180ºC (unlined).

Handling Information:

  • Box quantity: 1 set.
  • Box size: 44cm W x 19cm H x 22.5cm D.
  • Box weight: 0.859kg.

Reference Material:

  • Measurement of airborne sound insulation was made in accordance with BS EN 20140-10: 1992.
  • Single number quantities were calculated in accordance with BS EN ISO 717-1:1997.
  • Equivalent area tested to BS EN 13141-1:2004 and independently verified by the BRE.
  • Also refer to: The Building Regulations, Approved Document J,
  • The Building (Scotland) Regulations, Mandatory Standard 3.21,
  • The Building Regulations (Northern Ireland), Technical Booklet L,
  • British Standard BS 5440-2,
  • British Standard BS 5871-3 (decorative fuel effect gas fires).
